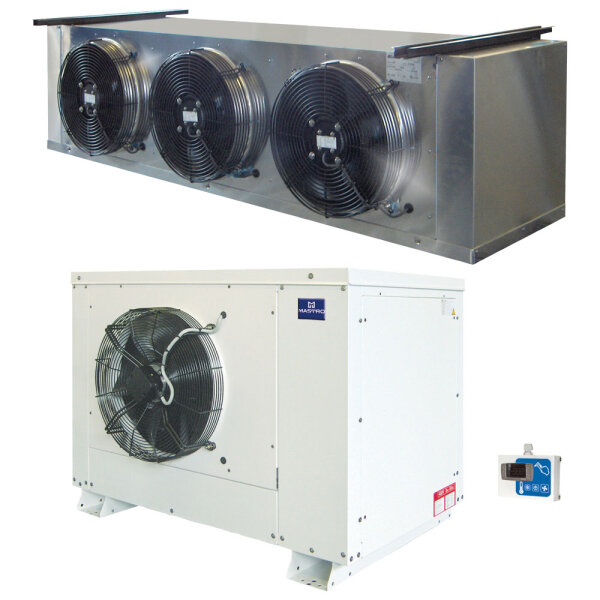

Floor split cooling unit, +5°/-5°C, 205,0m³/112,9m³ (+32°C)

SKU	VOVTX350
Category	Refrigeration units for cold rooms
Manufacturers	Mastro

Prices visible after login

pcs

Available immediately

Download PDF

Description

Electronic control panel. Expansion device with thermal expansion valve. Solid core filter on liquid line. Pre-arrangement for room lighting connection and for door switch connection. Cable for door heater connection on all low temperature units. All units are equipped with a fixed calibration low pressure switch and high pressure switch, in accordance with the “Pressure Equipment Directive” 2014/68/UE. All the units are supplied with a remote control panel already connected to the unit through a 5 m long cable (on request we could supply different lengths up to 20 m). Direct drainage of condensate. Drain heater. Condensing unit installation on the external floor of the cold room as well as evaporator installation on the ceiling inside the cold room. Sight glass. Solenoid valve on the liquid line in the forms 3I3-3I5 and in all models OVFR. On request it is available also in the models of the Forms 1I2-1I3-2I2-2I3. All units are supplied with a liquid receiver with safety valve, in accordance with the “Pressure Equipment Directive” 2014/68/UE. Liquid separator on suction line. Connection pipes couplings between condensing unit and evaporator have been realized without unions or weld neck flanges. Crankcase heater of compressor. Condenser fan pressure switch. Units suitable for external installation. Units recommended for use at ambient temperatures higher than 10°C. If units are mounted in Ambient temperature lower than 10°C, some accessories are needed. Cover to protect the unit against the bad weather. Note: connection pipes not included.

Product safety information

Manufacturer information:

Virtus Group GmbH
Hüserstrasse 53
Nordrhein-Westfalen
Hamm, Deutschland, 59075
info@virtusnet.de
https://virtusnet.de

Connection type:	electric
Width net (mm):	1360
Length net (mm):	931
Tension (V):	380-415
Operating temperature (°C):	+5/-5
Frequency (Hz):	50
total output Electric (kW):	5,360
GSA:	No
Catalog:	Yes
Title Catalogue:	Mastro Cook&Snack
Catalog page:	CS11-346
Number of packages:	2
Phase:	3F+N
