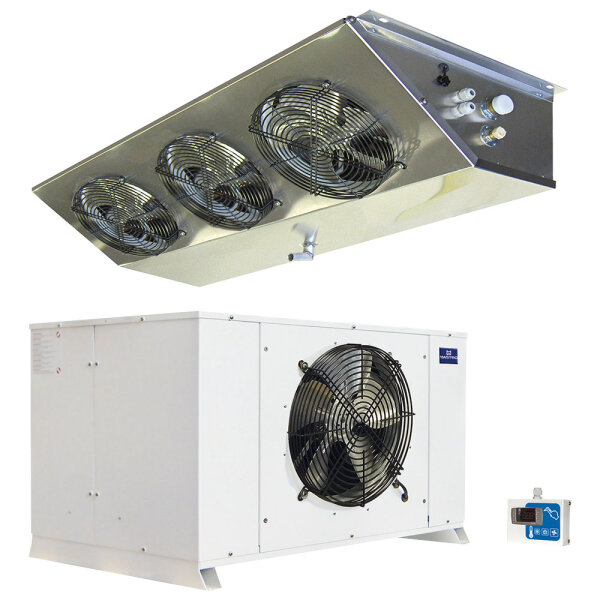

Floor split cooling unit, -18°/-25°C, 27,54m³/16,86m³ (+32°C) with lighting/pipes/switchboard cable 10 m

Sale 70%

SKU	VLBK300/TSP10
GTIN	4068875010476
Category	Refrigeration units for cold rooms
Manufacturers	Mastro

Prices visible after login

pcs

3 pcs In stock

Download PDF

Description

Electronic control panel. Type of Expansion with capillary tube. Solid core filter on liquid line. Pre-arrangement for room lighting connection and for door switch connection. Cable for door heater connection on low temperature units. All the models are equipped with a fixed calibration low pressure switch. All the split units are supplied with a remote control panel already connected to the unit through a 5 m long cable (on request we could supply different lengths up to 20 m). Direct drainage of condensate. Drain heater. Condensing unit installation on the external floor of the cold room as well as evaporator installation on the ceiling inside the cold room. The length of pipes and cables for the connection of condensing unit and evaporating unit is 5m (on request 10m). Pipes, condensing unit and evaporating unit are already pre-charged of refrigerant and supplied with quick couplings to facilitate the connection. Units suitable for external installation. Units recommended for use at ambient temperatures higher than 10°C. If units are mounted in Ambient temperature lower than 10°C, some accessories are needed.

Product safety information

Manufacturer information:

Virtus Group GmbH
Hüserstrasse 53
Nordrhein-Westfalen
Hamm, Deutschland, 59075
info@virtusnet.de
https://virtusnet.de

Connection type:	electric
Width net (mm):	856
Length net (mm):	596
Tension (V):	380-415
Item weight:	114,90 kg
Operating temperature (°C):	-18/-25
Frequency (Hz):	50
total output Electric (kW):	2,630
GSA:	No
Catalog:	Yes
Title Catalogue:	RESTPOSTEN
Catalog page:	RESTPOSTEN
Number of packages:	1
Phase:	3F+N
Noise level (dB):	46,21
